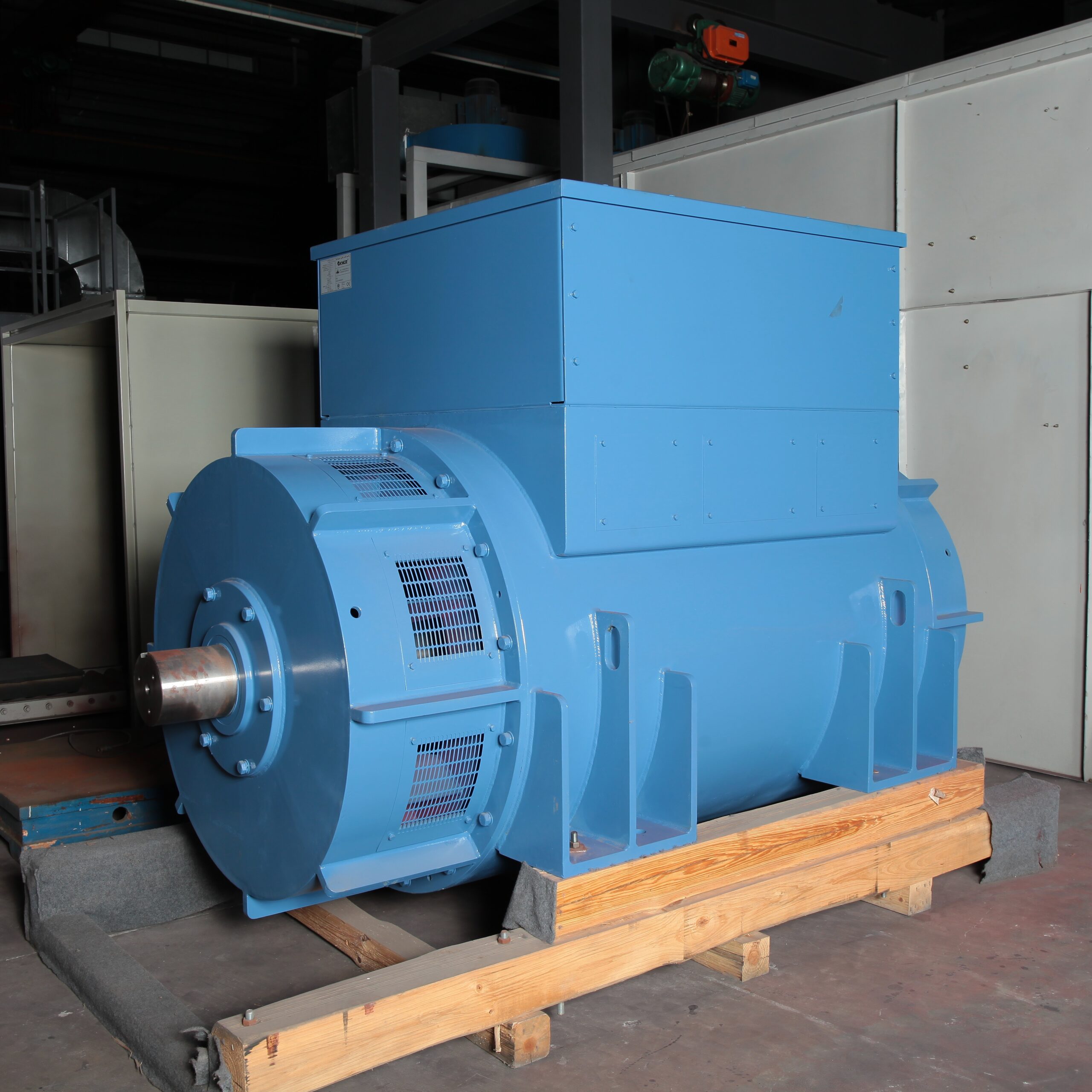

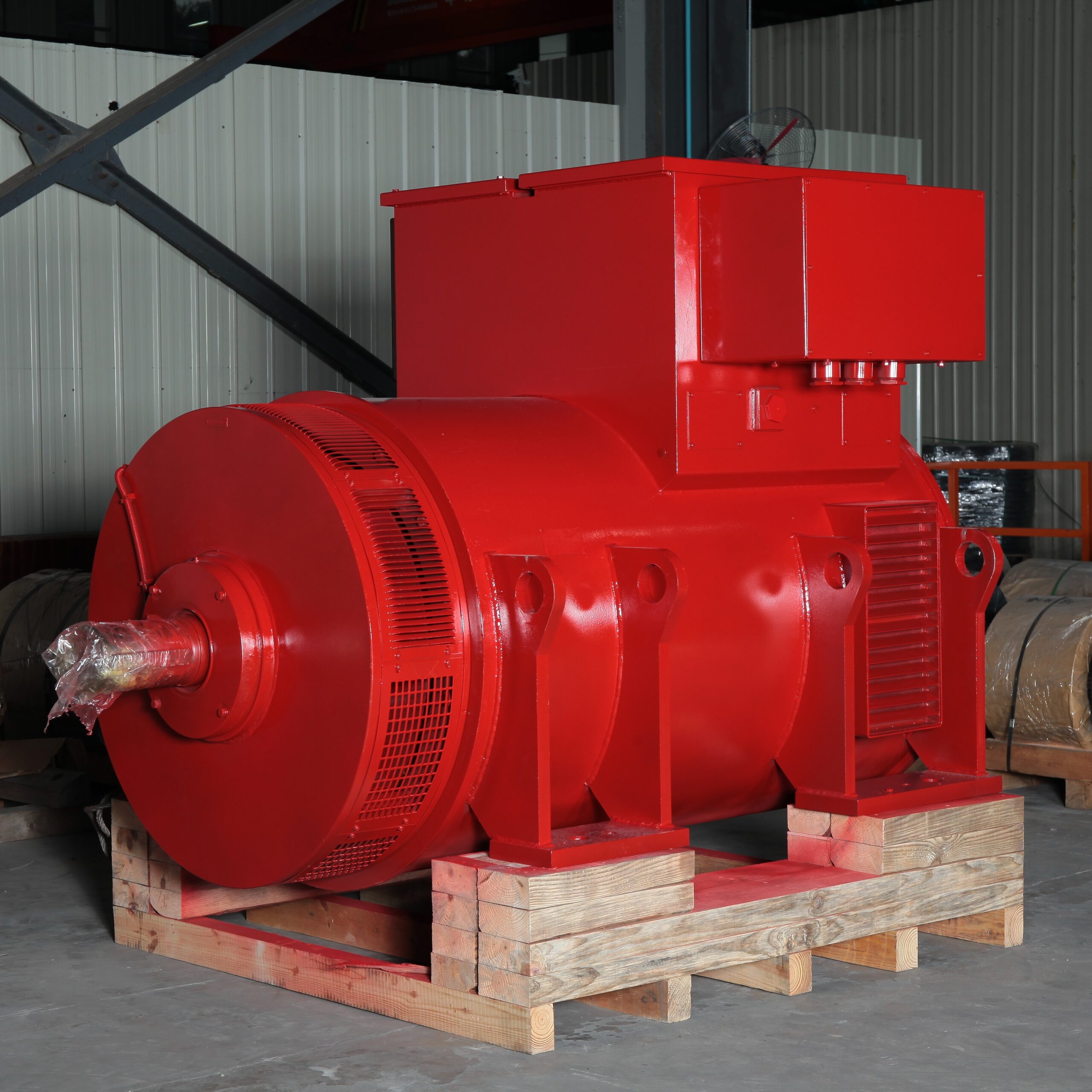

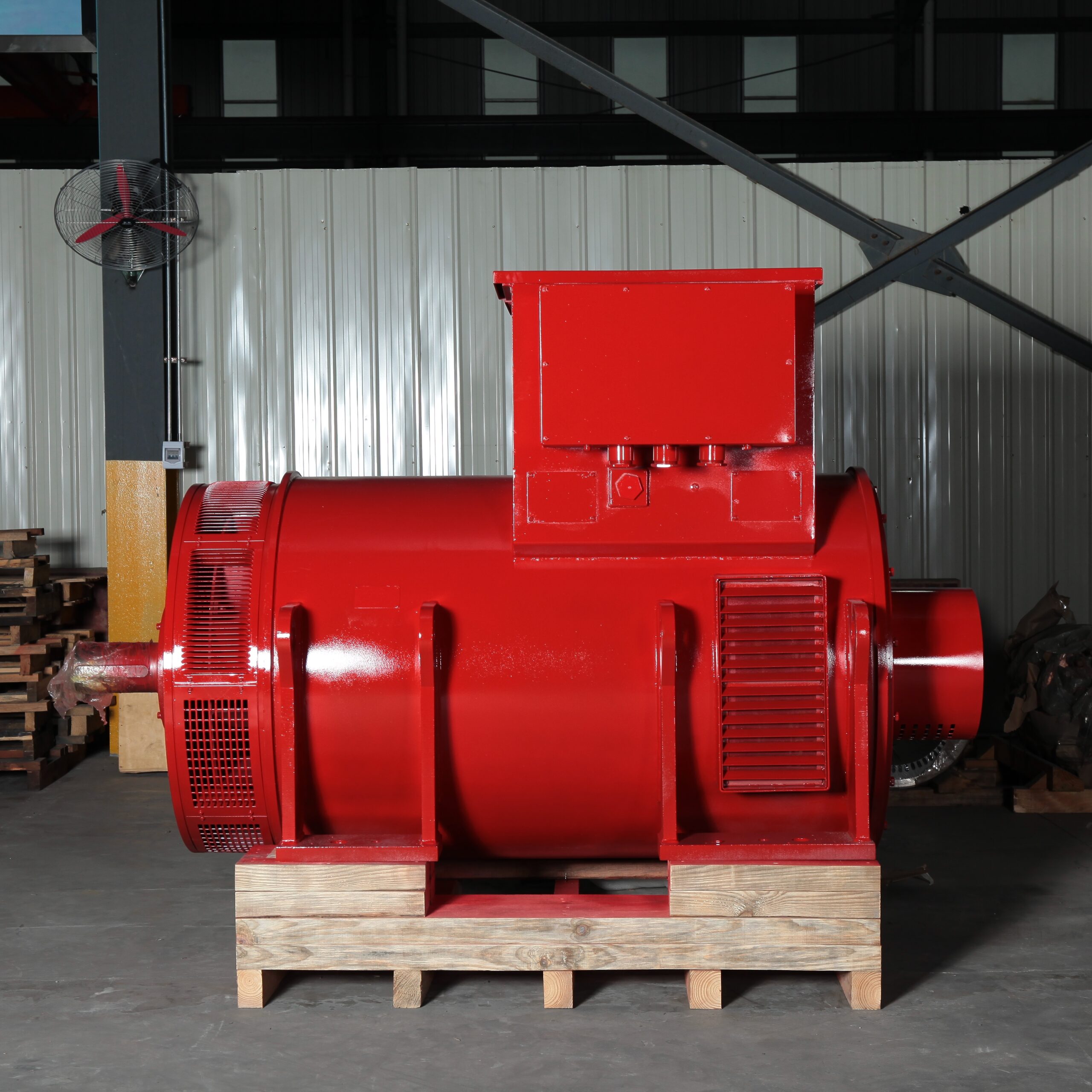

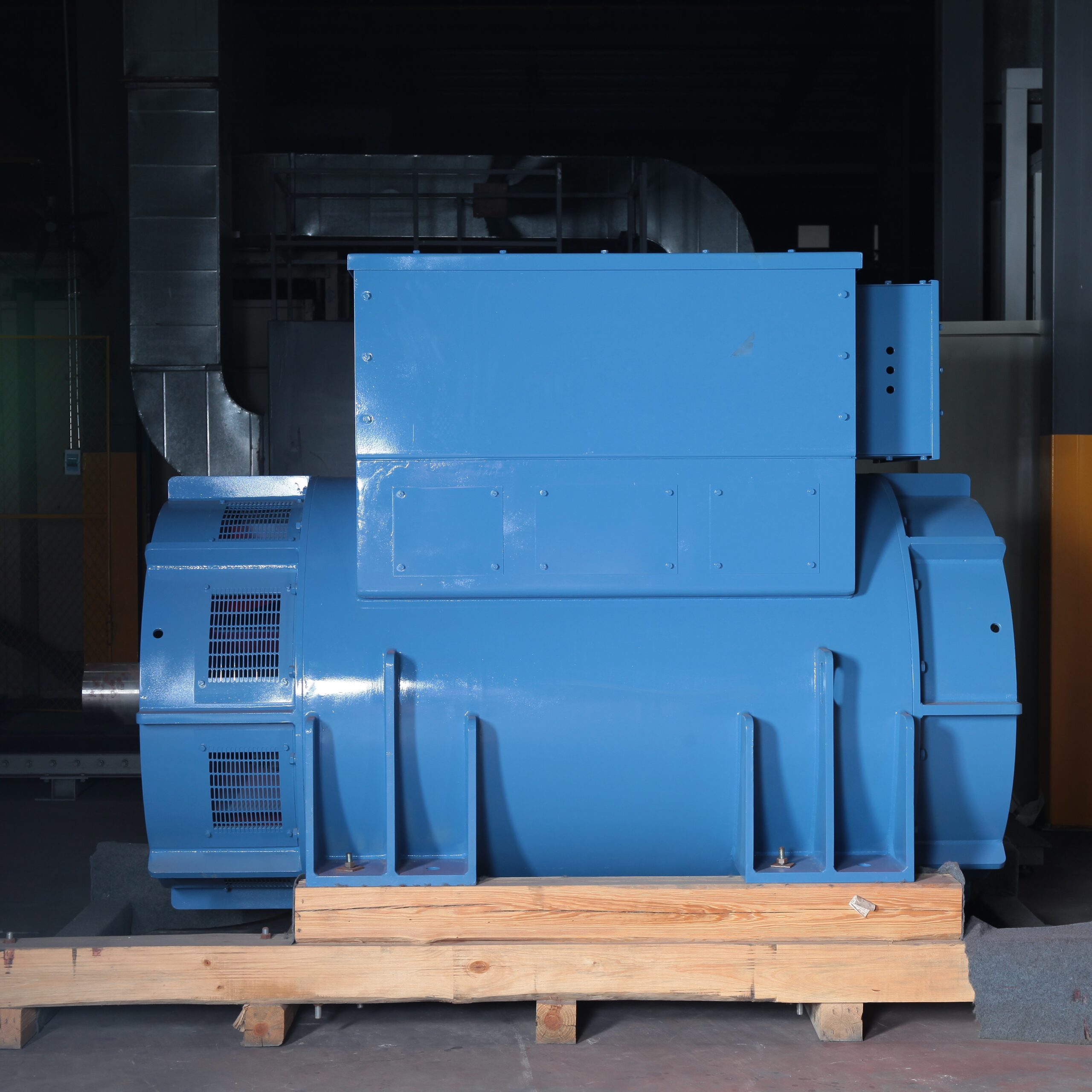

High Voltage Alternator
Previous image
Next image
Specification
| Frequency | Voltage | Poles | Power range | Power factor | Insulation class | Winding pitch |
|---|---|---|---|---|---|---|
| 50/60Hz | 6300V 10500V 13800V | 4/6/8/10 poles | 300-4000KW 375-5000kVA | 0.8 | H class | 5/6 (optional 2/3 pitch) |
Usage Characteristics
- High output voltage, small current, long distance, transmission line loss, voltage reduction;
- Small heat load loss, insulation system is not easy to aging, long service life of equipment;
- Strong anti-harmonic ability, with nonlinear load ability;
